FA27減速機重量：FA27減速機重量9公斤，F(xiàn)A27減速機與電機重量分別如下

FF27減速機與0.12KW電機重量14.5公斤，F(xiàn)F27減速機與0.18KW電機重量15公斤，F(xiàn)F27減速機與0.25KW電機重量19公斤，F(xiàn)F27減速機與0.37KW電機重量19.5公斤，F(xiàn)F27減速機與0.55KW電機重量24公斤，F(xiàn)F27減速機與0.75KW電機重量25公斤，F(xiàn)F27減速機與1.1KW電機重量29公斤，F(xiàn)F27減速機與1.5KW電機重量32公斤，F(xiàn)F27減速機與2.2KW電機重量41公斤。

FA27減速機加油量：可加齒輪油齒輪減速機

FA27減速機M3方式安裝加0.65L，F(xiàn)A27減速機M2方式安裝加0.8L，F(xiàn)A27減速機M1方式安裝加0.6L，F(xiàn)A27減速機M4方式安裝加0.7L，F(xiàn)A27減速機M5方式安裝加0.6L，F(xiàn)A27減速機M6方式安裝加0.6L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時,您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

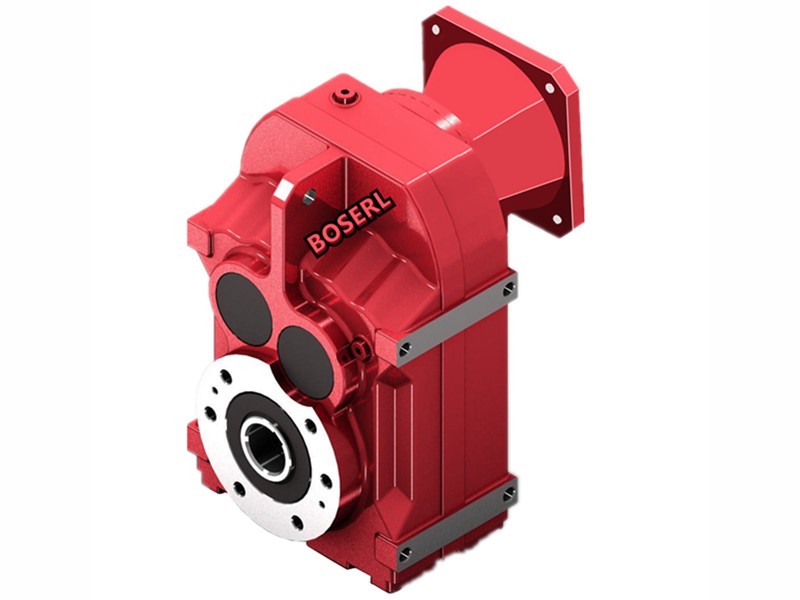

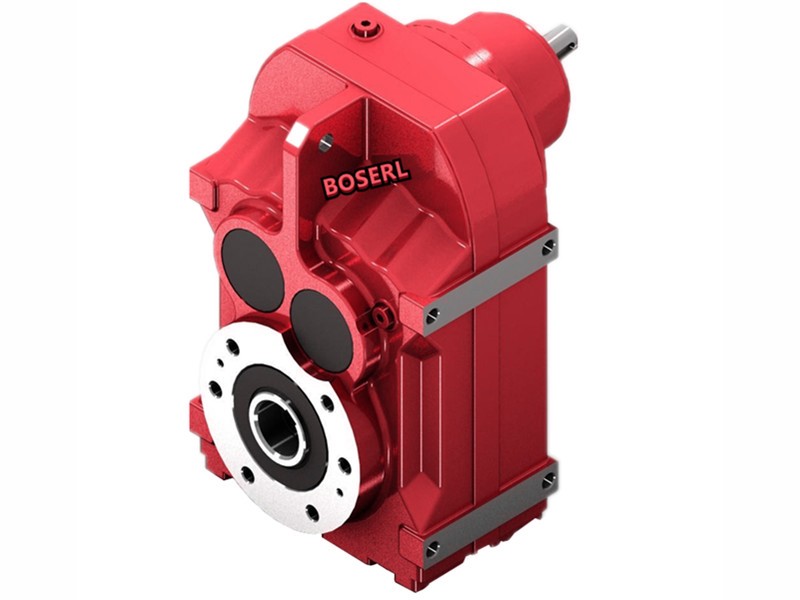

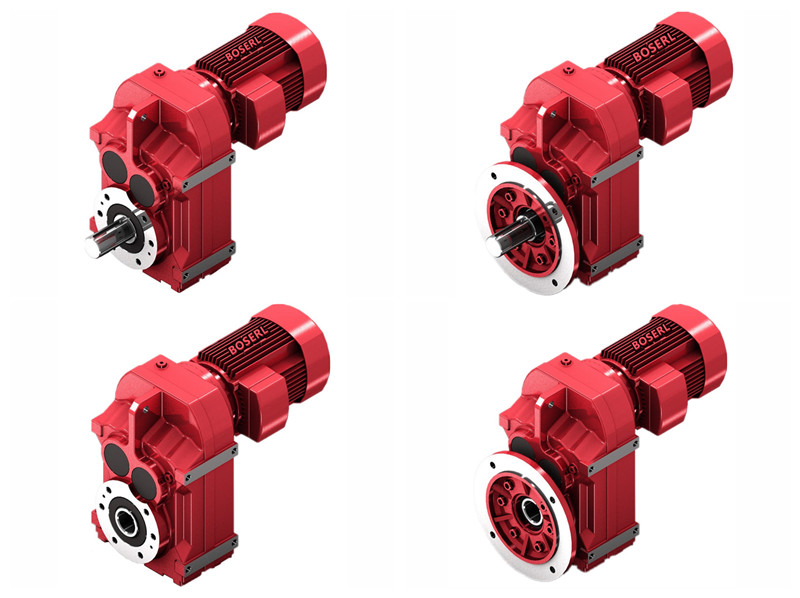

FA27減速機實物圖：圖一為FA27臥式孔輸出平行軸減速機，圖二F27底腳方式安裝軸輸出平行軸減速機，圖三為FF27立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF27立式法蘭孔輸出平行軸斜齒輪減速機。

FA27減速機型號表示方法：

FA27減速機型號結構FA27-B0.75KW-4P-減速比-方式安裝-接線盒位置。

FA27減速機性能參數表結構說明：HR手動釋放裝置，HF手動釋放裝置與自鎖功能，F(xiàn)A27，F(xiàn)F27，F(xiàn)27，F(xiàn)AF27減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FA27減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。分體減速機電機

FA27減速機參數：

FA27減速機減速比1:140，1:129，1:109，1:94，1:88，1:77，1:72，1:63，1:56，1:50，1:46，1:40，1:38，1:33，1:29，1:27，1:23，1:20，1:18，1:16，1:13，1:12，1:10，1:9，1:8，1:6，1:5，1:4

FA27減速機輸出轉數：9轉，11轉，13轉，15轉，16轉，18轉，19轉，22轉，25轉，28轉，30轉，34轉，37轉，41轉，47轉，52轉，60轉，69轉，74轉，86轉，101轉，113轉，133轉，142轉，149轉，172轉，203轉，227轉，266轉，284轉，337轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA27減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA27與0.12KW，F(xiàn)A27與0.18KW，F(xiàn)A27與0.25KW，F(xiàn)A27與0.37KW，F(xiàn)A27與0.55KW，F(xiàn)A27與0.75KW，F(xiàn)A27與1.1KW，F(xiàn)A27與1.5KW，F(xiàn)A27與2.2KW。

FA27減速機輸出扭矩130N.m，123N.m，114N.m，109N.m，100N.m，96N.m，87N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

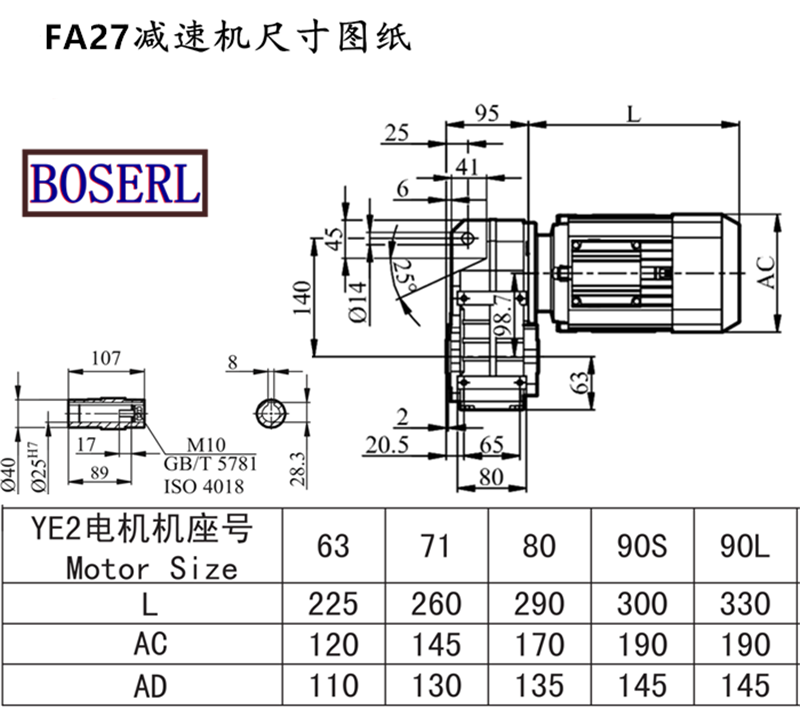

FA27減速機安裝尺寸：高226*寬150*長146

FA27減速機型號：FA27AQA80,FA27AQA100,FA27AQA115,FA27AQA140,FA27AQA160,FA27AQA190,FA27AQH80,FA27AQH100,FA27AQH115,FA27AQH140,FA27AQH160,FA27AQH190,JRTFA27-Y0.12KW,JRTFA27-Y0.18KW,JRTFA27-Y0.25KW,JRTFA27-Y0.37KW,JRTFA27-Y0.55KW,JRTFA27-Y0.75KW,JRTFA27-Y1.1KW,JRTFA27-Y1.5KW,JRTFA27-Y100M4,JRTFA27-Y2.2KW,JRTFA27-Y63M4,JRTFA27-Y71M4,JRTFA27-Y80M4,JRTFA27-Y90M4,JRTFA27-YEJ100M4,JRTFA27-YEJ63M4,JRTFA27-YEJ71M4,JRTFA27-YEJ80M4,JRTFA27-YEJ90M4,JRTFA27-YS100M4,JRTFA27-YS63M4,JRTFA27-YS71M4,JRTFA27-YS80M4,JRTFA27-YS90M4,JRTFA27-YVP100M4,JRTFA27-YVP63M4,JRTFA27-YVP71M4,JRTFA27-YVP80M4,JRTFA27-YVP90M4,JRTFA27-YVPEJ100M4,JRTFA27-YVPEJ63M4,JRTFA27-YVPEJ71M4,JRTFA27-YVPEJ80M4,JRTFA27-YVPEJ90M4,EWFA27-Y0.12KW,EWFA27-Y0.18KW,EWFA27-Y0.25KW,EWFA27-Y0.37KW,EWFA27-Y0.55KW,EWFA27-Y0.75KW,EWFA27-Y1.1KW,EWFA27-Y1.5KW,EWFA27-Y100M4,EWFA27-Y2.2KW,EWFA27-Y63M4,EWFA27-Y71M4,EWFA27-Y80M4,EWFA27-Y90M4,EWFA27-YEJ100M4,EWFA27-YEJ63M4,EWFA27-YEJ71M4,EWFA27-YEJ80M4,EWFA27-YEJ90M4,EWFA27-YS100M4,EWFA27-YS63M4,EWFA27-YS71M4,EWFA27-YS80M4,EWFA27-YS90M4,EWFA27-YVP100M4,EWFA27-YVP63M4,EWFA27-YVP71M4,EWFA27-YVP80M4,EWFA27-YVP90M4,EWFA27-YVPEJ100M4,EWFA27-YVPEJ63M4,EWFA27-YVPEJ71M4,EWFA27-YVPEJ80M4,EWFA27-YVPEJ90M4,SLFA27-Y0.12KW,SLFA27-Y0.18KW,SLFA27-Y0.25KW,SLFA27-Y0.37KW,SLFA27-Y0.55KW,SLFA27-Y0.75KW,SLFA27-Y1.1KW,SLFA27-Y1.5KW,SLFA27-Y100M4,SLFA27-Y2.2KW,SLFA27-Y63M4,SLFA27-Y71M4,SLFA27-Y80M4,SLFA27-Y90M4,SLFA27-YEJ100M4,SLFA27-YEJ63M4,SLFA27-YEJ71M4,SLFA27-YEJ80M4,SLFA27-YEJ90M4,SLFA27-YS100M4,SLFA27-YS63M4,SLFA27-YS71M4,SLFA27-YS80M4,SLFA27-YS90M4,SLFA27-YVP100M4,SLFA27-YVP63M4,SLFA27-YVP71M4,SLFA27-YVP80M4,SLFA27-YVP90M4,SLFA27-YVPEJ100M4,SLFA27-YVPEJ63M4,SLFA27-YVPEJ71M4,SLFA27-YVPEJ80M4,SLFA27-YVPEJ90M4,DSZFA27-Y0.12KW,DSZFA27-Y0.18KW,DSZFA27-Y0.25KW,DSZFA27-Y0.37KW,DSZFA27-Y0.55KW,DSZFA27-Y0.75KW,DSZFA27-Y1.1KW,DSZFA27-Y1.5KW,DSZFA27-Y100M4,DSZFA27-Y2.2KW,DSZFA27-Y63M4,DSZFA27-Y71M4,DSZFA27-Y80M4,DSZFA27-Y90M4,DSZFA27-YEJ100M4,DSZFA27-YEJ63M4,DSZFA27-YEJ71M4,DSZFA27-YEJ80M4,DSZFA27-YEJ90M4,DSZFA27-YS100M4,DSZFA27-YS63M4,DSZFA27-YS71M4,DSZFA27-YS80M4,DSZFA27-YS90M4,DSZFA27-YVP100M4,DSZFA27-YVP63M4,DSZFA27-YVP71M4,DSZFA27-YVP80M4,DSZFA27-YVP90M4,DSZFA27-YVPEJ100M4,DSZFA27-YVPEJ63M4,DSZFA27-YVPEJ71M4,DSZFA27-YVPEJ80M4,DSZFA27-YVPEJ90M4,BFA27-Y0.12KW,BFA27-Y0.18KW,BFA27-Y0.25KW,BFA27-Y0.37KW,BFA27-Y0.55KW,BFA27-Y0.75KW,BFA27-Y1.1KW,BFA27-Y1.5KW,BFA27-Y100M4,BFA27-Y2.2KW,BFA27-Y63M4,BFA27-Y71M4,BFA27-Y80M4,BFA27-Y90M4,BFA27-YEJ100M4,BFA27-YEJ63M4,BFA27-YEJ71M4,BFA27-YEJ80M4,BFA27-YEJ90M4,BFA27-YS100M4,BFA27-YS63M4,BFA27-YS71M4,BFA27-YS80M4,BFA27-YS90M4,BFA27-YVP100M4,BFA27-YVP63M4,BFA27-YVP71M4,BFA27-YVP80M4,BFA27-YVP90M4,BFA27-YVPEJ100M4,BFA27-YVPEJ63M4,BFA27-YVPEJ71M4,BFA27-YVPEJ80M4,BFA27-YVPEJ90M4,GFA27-Y0.12KW,GFA27-Y0.18KW,GFA27-Y0.25KW,GFA27-Y0.37KW,GFA27-Y0.55KW,GFA27-Y0.75KW,GFA27-Y1.1KW,GFA27-Y1.5KW,GFA27-Y100M4,GFA27-Y2.2KW,GFA27-Y63M4,GFA27-Y71M4,GFA27-Y80M4,GFA27-Y90M4,GFA27-YEJ100M4,GFA27-YEJ63M4,GFA27-YEJ71M4,GFA27-YEJ80M4,GFA27-YEJ90M4,GFA27-YS100M4,GFA27-YS63M4,GFA27-YS71M4,GFA27-YS80M4,GFA27-YS90M4,GFA27-YVP100M4,GFA27-YVP63M4,GFA27-YVP71M4,GFA27-YVP80M4,GFA27-YVP90M4,GFA27-YVPEJ100M4,GFA27-YVPEJ63M4,GFA27-YVPEJ71M4,GFA27-YVPEJ80M4,GFA27-YVPEJ90M4,FCA27-Y0.12KW,FCA27-Y0.18KW,FCA27-Y0.25KW,FCA27-Y0.37KW,FCA27-Y0.55KW,FCA27-Y0.75KW,FCA27-Y1.1KW,FCA27-Y1.5KW,FCA27-Y100M4,FCA27-Y2.2KW,FCA27-Y63M4,FCA27-Y71M4,FCA27-Y80M4,FCA27-Y90M4,FCA27-YEJ100M4,FCA27-YEJ63M4,FCA27-YEJ71M4,FCA27-YEJ80M4,FCA27-YEJ90M4,FCA27-YS100M4,FCA27-YS63M4,FCA27-YS71M4,FCA27-YS80M4,FCA27-YS90M4,FCA27-YVP100M4,FCA27-YVP63M4,FCA27-YVP71M4,FCA27-YVP80M4,FCA27-YVP90M4,FCA27-YVPEJ100M4,FCA27-YVPEJ63M4,FCA27-YVPEJ71M4,FCA27-YVPEJ80M4,FCA27-YVPEJ90M4,MTPA27-Y0.12KW,MTPA27-Y0.18KW,MTPA27-Y0.25KW,MTPA27-Y0.37KW,MTPA27-Y0.55KW,MTPA27-Y0.75KW,MTPA27-Y1.1KW,MTPA27-Y1.5KW,MTPA27-Y100M4,MTPA27-Y2.2KW,MTPA27-Y63M4,MTPA27-Y71M4,MTPA27-Y80M4,MTPA27-Y90M4,MTPA27-YEJ100M4,MTPA27-YEJ63M4,MTPA27-YEJ71M4,MTPA27-YEJ80M4,MTPA27-YEJ90M4,MTPA27-YS100M4,MTPA27-YS63M4,MTPA27-YS71M4,MTPA27-YS80M4,MTPA27-YS90M4,MTPA27-YVP100M4,MTPA27-YVP63M4,MTPA27-YVP71M4,MTPA27-YVP80M4,MTPA27-YVP90M4,MTPA27-YVPEJ100M4,MTPA27-YVPEJ63M4,MTPA27-YVPEJ71M4,MTPA27-YVPEJ80M4,MTPA27-YVPEJ90M4,WXFA27-WSS0.12KW,WXFA27-WSS0.18KW,WXFA27-WSS0.25KW,WXFA27-WSS0.37KW,WXFA27-WSS0.55KW,WXFA27-WSS0.75KW,WXFA27-WSS1.1KW,WXFA27-WSS1.5KW,WXFA27-WSS100M4,WXFA27-WSS2.2KW,WXFA27-WSS63M4,WXFA27-WSS71M4,WXFA27-WSS80M4,WXFA27-WSS90M4,WXFA27-WSSB100M4,WXFA27-WSSB63M4,WXFA27-WSSB71M4,WXFA27-WSSB80M4,WXFA27-WSSB90M4,WXFA27-WSSVP100M4,WXFA27-WSSVP63M4,WXFA27-WSSVP71M4,WXFA27-WSSVP80M4,WXFA27-WSSVP90M4,WXFA27-WSSVPB100M4,WXFA27-WSSVPB63M4,WXFA27-WSSVPB71M4,WXFA27-WSSVPB80M4,WXFA27-WSSVPB90M4。

FA27減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.hjghgs.com/product/list-faxiliejiansuji-cn.html
