FF57減速機重量：FF57減速機重量36公斤，F(xiàn)F57減速機帶電機重量分別如下

FF57減速機帶0.12KW電機重量41.5公斤，F(xiàn)F57減速機帶0.18KW電機重量42公斤，F(xiàn)F57減速機帶0.25KW電機重量46公斤，F(xiàn)F57減速機帶0.37KW電機重量46.5公斤，F(xiàn)F57減速機帶0.55KW電機重量51公斤，F(xiàn)F57減速機帶0.75KW電機重量52公斤，F(xiàn)F57減速機帶1.1KW電機重量56公斤，F(xiàn)F57減速機帶1.5KW電機重量59公斤，F(xiàn)F57減速機帶2.2KW電機重量68公斤，F(xiàn)F57減速機帶3KW電機重量71公斤，F(xiàn)F57減速機帶4KW電機重量82公斤，F(xiàn)F57減速機帶5.5KW電機重量96公斤。

FF57減速機加油量：可加合成油

FF57減速機M2安裝方式加3.5L，F(xiàn)F57減速機M1安裝方式加2.8L，F(xiàn)F57減速機M3安裝方式加2.1L，F(xiàn)F57減速機M4安裝方式加3.7L，F(xiàn)F57減速機M5安裝方式加2.9L，F(xiàn)F57減速機M6安裝方式加3L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

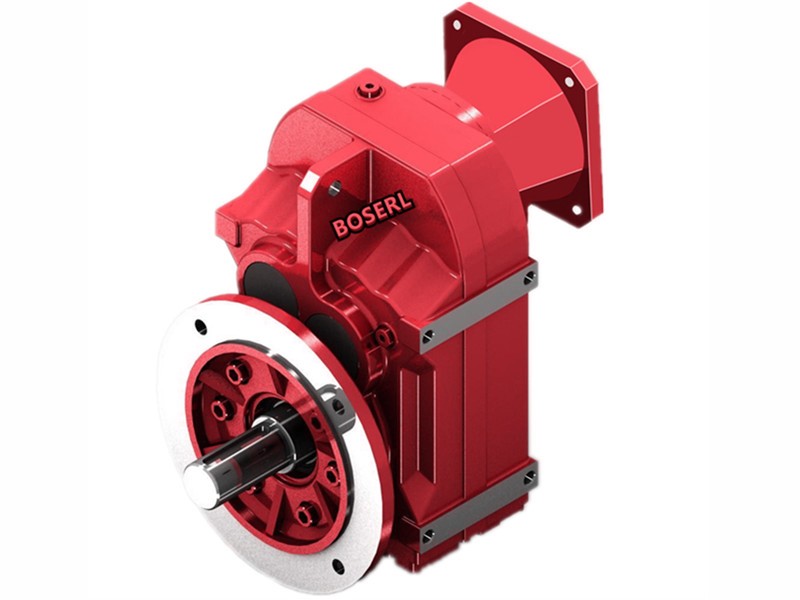

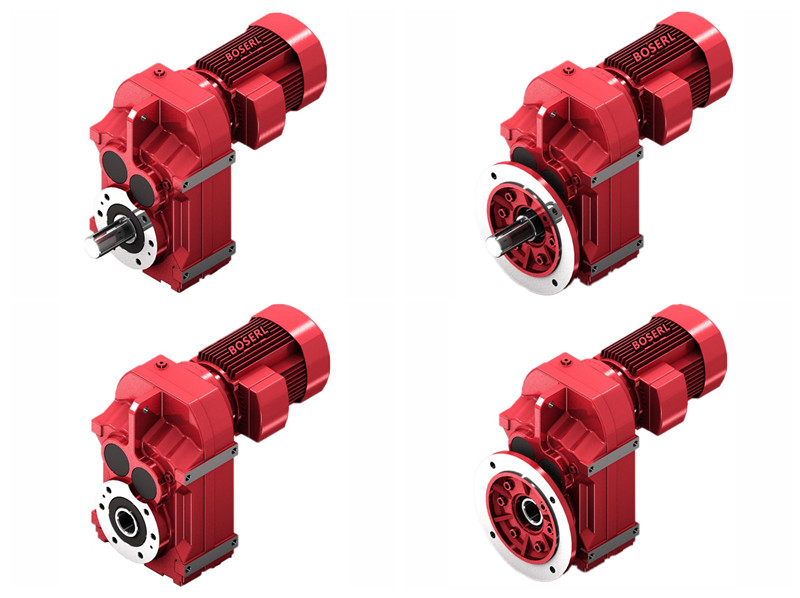

FF57減速機實物圖：圖一為FF57立式法蘭軸輸出平行軸斜齒輪減速機，圖二F57底腳安裝方式軸輸出平行軸減速機，圖三為FA57臥式孔輸出平行軸減速機，圖四為FAF57立式法蘭孔輸出平行軸斜齒輪減速機。

FF57減速機型號表示方法：

FF57減速機型號結構FF57-B3KW-4P-減速比-安裝方式-接線盒位置。

FF57減速機性能參數表結構說明：HF手動釋放裝置帶自鎖功能，F(xiàn)F57、F57、FA57、FAF57減速機機座號，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FF57減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝方式，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。平行軸斜齒輪減速機

FF57減速機參數：

FF57減速機輸出轉數270rpm/min，7rpm/min，8rpm/min，9rpm/min，10rpm/min，11rpm/min，13rpm/min，15rpm/min，17rpm/min，19rpm/min，21rpm/min，24rpm/min，28rpm/min，31rpm/min，37rpm/min，39rpm/min，46rpm/min，35rpm/min，41rpm/min，47rpm/min，49rpm/min，56rpm/min，66rpm/min，73rpm/min，83rpm/min，88rpm/min，104rpm/min，114rpm/min，132rpm/min，150rpm/min，171rpm/min，181rpm/min，213rpm/min，234rpm/min。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FF57減速機電機可帶直流、變頻、剎車、防爆、伺服、交流、三相、單相電機FF57帶0.12KW，F(xiàn)F57帶0.18KW，F(xiàn)F57帶0.25KW，F(xiàn)F57帶0.37KW，F(xiàn)F57帶0.55KW，F(xiàn)F57帶0.75KW，F(xiàn)F57帶1.1KW，F(xiàn)F57帶1.5KW，F(xiàn)F57帶2.2KW，F(xiàn)F57帶3KW，F(xiàn)F57帶4KW，F(xiàn)F57帶5.5KW。

FF57減速機輸出扭矩600N.m，590N.m，290N.m，500N.m，545N.m，535N.m，575N.m，420N.m，415N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FF57減速機減速比199比，183比，157比，136比，127比，110比，93比，83比，72比，68比，58比，50比，44比，38比，35比，30比，40比，34比，29比，28比，24比，21比，19比，16比，15比，13比，12比，10比，9比，7比，6比，5比

FF57減速機外形尺寸：輸出軸直徑Φ35+鍵3（可定做），高315*寬200*長243（帶輸出軸）剎車電機減速機

FF57減速機型號：FF57AQA80,FF57AQA100,FF57AQA115,FF57AQA140,FF57AQA160,FF57AQA190,FF57AQH80,FF57AQH100,FF57AQH115,FF57AQH140,FF57AQH160,FF57AQH190,JRTFF57-Y0.12KW,JRTFF57-Y0.18KW,JRTFF57-Y0.25KW,JRTFF57-Y0.37KW,JRTFF57-Y0.55KW,JRTFF57-Y0.75KW,JRTFF57-Y1.1KW,JRTFF57-Y1.5KW,JRTFF57-Y100M4,JRTFF57-Y112M4,JRTFF57-Y132M4,JRTFF57-Y2.2KW,JRTFF57-Y3KW,JRTFF57-Y4KW,JRTFF57-Y5.5KW,JRTFF57-Y63M4,JRTFF57-Y71M4,JRTFF57-Y80M4,JRTFF57-Y90M4,JRTFF57-YEJ100M4,JRTFF57-YEJ112M4,JRTFF57-YEJ132M4,JRTFF57-YEJ63M4,JRTFF57-YEJ71M4,JRTFF57-YEJ80M4,JRTFF57-YEJ90M4,JRTFF57-YS100M4,JRTFF57-YS112M4,JRTFF57-YS132M4,JRTFF57-YS63M4,JRTFF57-YS71M4,JRTFF57-YS80M4,JRTFF57-YS90M4,JRTFF57-YVP100M4,JRTFF57-YVP112M4,JRTFF57-YVP132M4,JRTFF57-YVP63M4,JRTFF57-YVP71M4,JRTFF57-YVP80M4,JRTFF57-YVP90M4,JRTFF57-YVPEJ100M4,JRTFF57-YVPEJ112M4,JRTFF57-YVPEJ132M4,JRTFF57-YVPEJ63M4,JRTFF57-YVPEJ71M4,JRTFF57-YVPEJ80M4,JRTFF57-YVPEJ90M4,EWFF57-Y0.12KW,EWFF57-Y0.18KW,EWFF57-Y0.25KW,EWFF57-Y0.37KW,EWFF57-Y0.55KW,EWFF57-Y0.75KW,EWFF57-Y1.1KW,EWFF57-Y1.5KW,EWFF57-Y100M4,EWFF57-Y112M4,EWFF57-Y132M4,EWFF57-Y2.2KW,EWFF57-Y3KW,EWFF57-Y4KW,EWFF57-Y5.5KW,EWFF57-Y63M4,EWFF57-Y71M4,EWFF57-Y80M4,EWFF57-Y90M4,EWFF57-YEJ100M4,EWFF57-YEJ112M4,EWFF57-YEJ132M4,EWFF57-YEJ63M4,EWFF57-YEJ71M4,EWFF57-YEJ80M4,EWFF57-YEJ90M4,EWFF57-YS100M4,EWFF57-YS112M4,EWFF57-YS132M4,EWFF57-YS63M4,EWFF57-YS71M4,EWFF57-YS80M4,EWFF57-YS90M4,EWFF57-YVP100M4,EWFF57-YVP112M4,EWFF57-YVP132M4,EWFF57-YVP63M4,EWFF57-YVP71M4,EWFF57-YVP80M4,EWFF57-YVP90M4,EWFF57-YVPEJ100M4,EWFF57-YVPEJ112M4,EWFF57-YVPEJ132M4,EWFF57-YVPEJ63M4,EWFF57-YVPEJ71M4,EWFF57-YVPEJ80M4,EWFF57-YVPEJ90M4,SLFF57-Y0.12KW,SLFF57-Y0.18KW,SLFF57-Y0.25KW,SLFF57-Y0.37KW,SLFF57-Y0.55KW,SLFF57-Y0.75KW,SLFF57-Y1.1KW,SLFF57-Y1.5KW,SLFF57-Y100M4,SLFF57-Y112M4,SLFF57-Y132M4,SLFF57-Y2.2KW,SLFF57-Y3KW,SLFF57-Y4KW,SLFF57-Y5.5KW,SLFF57-Y63M4,SLFF57-Y71M4,SLFF57-Y80M4,SLFF57-Y90M4,SLFF57-YEJ100M4,SLFF57-YEJ112M4,SLFF57-YEJ132M4,SLFF57-YEJ63M4,SLFF57-YEJ71M4,SLFF57-YEJ80M4,SLFF57-YEJ90M4,SLFF57-YS100M4,SLFF57-YS112M4,SLFF57-YS132M4,SLFF57-YS63M4,SLFF57-YS71M4,SLFF57-YS80M4,SLFF57-YS90M4,SLFF57-YVP100M4,SLFF57-YVP112M4,SLFF57-YVP132M4,SLFF57-YVP63M4,SLFF57-YVP71M4,SLFF57-YVP80M4,SLFF57-YVP90M4,SLFF57-YVPEJ100M4,SLFF57-YVPEJ112M4,SLFF57-YVPEJ132M4,SLFF57-YVPEJ63M4,SLFF57-YVPEJ71M4,SLFF57-YVPEJ80M4,SLFF57-YVPEJ90M4,DSZFF57-Y0.12KW,DSZFF57-Y0.18KW,DSZFF57-Y0.25KW,DSZFF57-Y0.37KW,DSZFF57-Y0.55KW,DSZFF57-Y0.75KW,DSZFF57-Y1.1KW,DSZFF57-Y1.5KW,DSZFF57-Y100M4,DSZFF57-Y112M4,DSZFF57-Y132M4,DSZFF57-Y2.2KW,DSZFF57-Y3KW,DSZFF57-Y4KW,DSZFF57-Y5.5KW,DSZFF57-Y63M4,DSZFF57-Y71M4,DSZFF57-Y80M4,DSZFF57-Y90M4,DSZFF57-YEJ100M4,DSZFF57-YEJ112M4,DSZFF57-YEJ132M4,DSZFF57-YEJ63M4,DSZFF57-YEJ71M4,DSZFF57-YEJ80M4,DSZFF57-YEJ90M4,DSZFF57-YS100M4,DSZFF57-YS112M4,DSZFF57-YS132M4,DSZFF57-YS63M4,DSZFF57-YS71M4,DSZFF57-YS80M4,DSZFF57-YS90M4,DSZFF57-YVP100M4,DSZFF57-YVP112M4,DSZFF57-YVP132M4,DSZFF57-YVP63M4,DSZFF57-YVP71M4,DSZFF57-YVP80M4,DSZFF57-YVP90M4,DSZFF57-YVPEJ100M4,DSZFF57-YVPEJ112M4,DSZFF57-YVPEJ132M4,DSZFF57-YVPEJ63M4,DSZFF57-YVPEJ71M4,DSZFF57-YVPEJ80M4,DSZFF57-YVPEJ90M4,BFF57-Y0.12KW,BFF57-Y0.18KW,BFF57-Y0.25KW,BFF57-Y0.37KW,BFF57-Y0.55KW,BFF57-Y0.75KW,BFF57-Y1.1KW,BFF57-Y1.5KW,BFF57-Y100M4,BFF57-Y112M4,BFF57-Y132M4,BFF57-Y2.2KW,BFF57-Y3KW,BFF57-Y4KW,BFF57-Y5.5KW,BFF57-Y63M4,BFF57-Y71M4,BFF57-Y80M4,BFF57-Y90M4,BFF57-YEJ100M4,BFF57-YEJ112M4,BFF57-YEJ132M4,BFF57-YEJ63M4,BFF57-YEJ71M4,BFF57-YEJ80M4,BFF57-YEJ90M4,BFF57-YS100M4,BFF57-YS112M4,BFF57-YS132M4,BFF57-YS63M4,BFF57-YS71M4,BFF57-YS80M4,BFF57-YS90M4,BFF57-YVP100M4,BFF57-YVP112M4,BFF57-YVP132M4,BFF57-YVP63M4,BFF57-YVP71M4,BFF57-YVP80M4,BFF57-YVP90M4,BFF57-YVPEJ100M4,BFF57-YVPEJ112M4,BFF57-YVPEJ132M4,BFF57-YVPEJ63M4,BFF57-YVPEJ71M4,BFF57-YVPEJ80M4,BFF57-YVPEJ90M4,GFF57-Y0.12KW,GFF57-Y0.18KW,GFF57-Y0.25KW,GFF57-Y0.37KW,GFF57-Y0.55KW,GFF57-Y0.75KW,GFF57-Y1.1KW,GFF57-Y1.5KW,GFF57-Y100M4,GFF57-Y112M4,GFF57-Y132M4,GFF57-Y2.2KW,GFF57-Y3KW,GFF57-Y4KW,GFF57-Y5.5KW,GFF57-Y63M4,GFF57-Y71M4,GFF57-Y80M4,GFF57-Y90M4,GFF57-YEJ100M4,GFF57-YEJ112M4,GFF57-YEJ132M4,GFF57-YEJ63M4,GFF57-YEJ71M4,GFF57-YEJ80M4,GFF57-YEJ90M4,GFF57-YS100M4,GFF57-YS112M4,GFF57-YS132M4,GFF57-YS63M4,GFF57-YS71M4,GFF57-YS80M4,GFF57-YS90M4,GFF57-YVP100M4,GFF57-YVP112M4,GFF57-YVP132M4,GFF57-YVP63M4,GFF57-YVP71M4,GFF57-YVP80M4,GFF57-YVP90M4,GFF57-YVPEJ100M4,GFF57-YVPEJ112M4,GFF57-YVPEJ132M4,GFF57-YVPEJ63M4,GFF57-YVPEJ71M4,GFF57-YVPEJ80M4,GFF57-YVPEJ90M4,FCF57-Y0.12KW,FCF57-Y0.18KW,FCF57-Y0.25KW,FCF57-Y0.37KW,FCF57-Y0.55KW,FCF57-Y0.75KW,FCF57-Y1.1KW,FCF57-Y1.5KW,FCF57-Y100M4,FCF57-Y112M4,FCF57-Y132M4,FCF57-Y2.2KW,FCF57-Y3KW,FCF57-Y4KW,FCF57-Y5.5KW,FCF57-Y63M4,FCF57-Y71M4,FCF57-Y80M4,FCF57-Y90M4,FCF57-YEJ100M4,FCF57-YEJ112M4,FCF57-YEJ132M4,FCF57-YEJ63M4,FCF57-YEJ71M4,FCF57-YEJ80M4,FCF57-YEJ90M4,FCF57-YS100M4,FCF57-YS112M4,FCF57-YS132M4,FCF57-YS63M4,FCF57-YS71M4,FCF57-YS80M4,FCF57-YS90M4,FCF57-YVP100M4,FCF57-YVP112M4,FCF57-YVP132M4,FCF57-YVP63M4,FCF57-YVP71M4,FCF57-YVP80M4,FCF57-YVP90M4,FCF57-YVPEJ100M4,FCF57-YVPEJ112M4,FCF57-YVPEJ132M4,FCF57-YVPEJ63M4,FCF57-YVPEJ71M4,FCF57-YVPEJ80M4,FCF57-YVPEJ90M4,MTPF57-Y0.12KW,MTPF57-Y0.18KW,MTPF57-Y0.25KW,MTPF57-Y0.37KW,MTPF57-Y0.55KW,MTPF57-Y0.75KW,MTPF57-Y1.1KW,MTPF57-Y1.5KW,MTPF57-Y100M4,MTPF57-Y112M4,MTPF57-Y132M4,MTPF57-Y2.2KW,MTPF57-Y3KW,MTPF57-Y4KW,MTPF57-Y5.5KW,MTPF57-Y63M4,MTPF57-Y71M4,MTPF57-Y80M4,MTPF57-Y90M4,MTPF57-YEJ100M4,MTPF57-YEJ112M4,MTPF57-YEJ132M4,MTPF57-YEJ63M4,MTPF57-YEJ71M4,MTPF57-YEJ80M4,MTPF57-YEJ90M4,MTPF57-YS100M4,MTPF57-YS112M4,MTPF57-YS132M4,MTPF57-YS63M4,MTPF57-YS71M4,MTPF57-YS80M4,MTPF57-YS90M4,MTPF57-YVP100M4,MTPF57-YVP112M4,MTPF57-YVP132M4,MTPF57-YVP63M4,MTPF57-YVP71M4,MTPF57-YVP80M4,MTPF57-YVP90M4,MTPF57-YVPEJ100M4,MTPF57-YVPEJ112M4,MTPF57-YVPEJ132M4,MTPF57-YVPEJ63M4,MTPF57-YVPEJ71M4,MTPF57-YVPEJ80M4,MTPF57-YVPEJ90M4,WXFF57-WSS0.12KW,WXFF57-WSS0.18KW,WXFF57-WSS0.25KW,WXFF57-WSS0.37KW,WXFF57-WSS0.55KW,WXFF57-WSS0.75KW,WXFF57-WSS1.1KW,WXFF57-WSS1.5KW,WXFF57-WSS100M4,WXFF57-WSS112M4,WXFF57-WSS132M4,WXFF57-WSS2.2KW,WXFF57-WSS3KW,WXFF57-WSS4KW,WXFF57-WSS5.5KW,WXFF57-WSS63M4,WXFF57-WSS71M4,WXFF57-WSS80M4,WXFF57-WSS90M4,WXFF57-WSSB100M4,WXFF57-WSSB112M4,WXFF57-WSSB132M4,WXFF57-WSSB63M4,WXFF57-WSSB71M4,WXFF57-WSSB80M4,WXFF57-WSSB90M4,WXFF57-WSSVP100M4,WXFF57-WSSVP112M4,WXFF57-WSSVP132M4,WXFF57-WSSVP63M4,WXFF57-WSSVP71M4,WXFF57-WSSVP80M4,WXFF57-WSSVP90M4,WXFF57-WSSVPB100M4,WXFF57-WSSVPB112M4,WXFF57-WSSVPB132M4,WXFF57-WSSVPB63M4,WXFF57-WSSVPB71M4,WXFF57-WSSVPB80M4,WXFF57-WSSVPB90M4。
