R147減速機重量：R147減速機重量400Kg，R147減速機配電機重量分別如下：

R147減速機配5.5KW電機重量460Kg,R147減速機配7.5KW電機重量473Kg,R147減速機配11KW電機重量515Kg,R147減速機配15KW電機重量535Kg,R147減速機配18.5KW電機重量572Kg,R147減速機配22KW電機重量585Kg,R147減速機配30KW電機重量653Kg,R147減速機配37KW電機重量700Kg,R147減速機配45KW電機重量735Kg,R147減速機配55KW電機重量820Kg,R147減速機配75KW電機重量960Kg,R147減速機配90KW電機重量1070Kg同軸減速機

R147減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R147減速機M1安裝加15.4/40升，R147減速機M2安裝加46.5升，R147減速機M3安裝加48升，R147減速機M4安裝加52升，R147減速機M5安裝加39.5升，R147減速機M6安裝加41升。

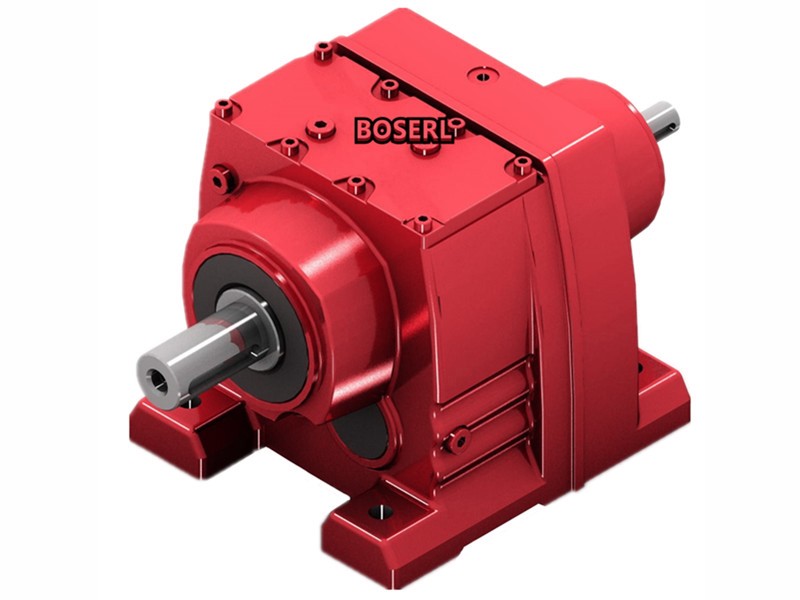

R147減速機實物圖：圖一為R147底腳安裝斜齒輪減速機，圖二RF147法蘭立式安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

R147減速機型號表示方法：

R147減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R147減速機型號結構R147-B90KW-4P-減速比-安裝方式-接線盒位置。

R147減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R147減速機結構圖：

R147減速機參數：R系列減速機

R147減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R147配5.5KW,R147配7.5KW,R147配11KW,R147配15KW,R147配18.5KW,R147配22KW,R147配30KW,R147配37KW,R147配45KW,R147配55KW,R147配75KW,R147配90KW。

R147減速機減速比5比,5.89比,7.25比,8.26比,9.74比,11.99比,13.91比,15.64比,18.04比,20.44比,24.19比,29.95比,35.64比,40.29比,46.65比,52.87比,61.09比,66.99比,72.09比,83.47比,94.6比,109.31比,119.86比,146.91比,163.31比。

R147減速機輸出轉速8.6轉,9.5轉,12轉,13轉,15轉,17轉,19轉,21轉,23轉,26轉,30轉,35轉,39轉,47轉,58轉,68轉,78轉,90轉,101轉,117轉,144轉,169轉,193轉,238轉,280轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R147減速機負載扭矩8670N.m,10500N.m,11900N.m,12000N.m,12600N.m,13000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R147減速機尺寸圖紙：高565*寬530*長695（帶輸出軸）齒輪減速機

R147減速機型號:

R147AQA80,R147AQA100,R147AQA115,R147AQA140,R147AQA160,R147AQA190,R147AQH80,R147AQH100,R147AQH115,R147AQH140,R147AQH160,R147AQH190,JRTR147-Y11KW,JRTR147-Y132M4,JRTR147-Y15KW,JRTR147-Y160M4,JRTR147-Y18.5KW,JRTR147-Y180M4,JRTR147-Y200M4,JRTR147-Y225M4,JRTR147-Y22KW,JRTR147-Y250M4,JRTR147-Y280M4,JRTR147-Y30KW,JRTR147-Y37KW,JRTR147-Y45KW,JRTR147-Y55KW,JRTR147-Y75KW,JRTR147-Y90KW,JRTR147-YEJ132M4,JRTR147-YEJ160M4,JRTR147-YEJ180M4,JRTR147-YEJ200M4,JRTR147-YEJ225M4,JRTR147-YEJ250M4,JRTR147-YEJ280M4,JRTR147-YS132M4,JRTR147-YS160M4,JRTR147-YS180M4,JRTR147-YS200M4,JRTR147-YS225M4,JRTR147-YS250M4,JRTR147-YS280M4,JRTR147-YVP132M4,JRTR147-YVP160M4,JRTR147-YVP180M4,JRTR147-YVP200M4,JRTR147-YVP225M4,JRTR147-YVP250M4,JRTR147-YVP280M4,JRTR147-YVPEJ132M4,JRTR147-YVPEJ160M4,JRTR147-YVPEJ180M4,JRTR147-YVPEJ200M4,JRTR147-YVPEJ225M4,JRTR147-YVPEJ250M4,JRTR147-YVPEJ280M4,EWR147-Y11KW,EWR147-Y132M4,EWR147-Y15KW,EWR147-Y160M4,EWR147-Y18.5KW,EWR147-Y180M4,EWR147-Y200M4,EWR147-Y225M4,EWR147-Y22KW,EWR147-Y250M4,EWR147-Y280M4,EWR147-Y30KW,EWR147-Y37KW,EWR147-Y45KW,EWR147-Y55KW,EWR147-Y75KW,EWR147-Y90KW,EWR147-YEJ132M4,EWR147-YEJ160M4,EWR147-YEJ180M4,EWR147-YEJ200M4,EWR147-YEJ225M4,EWR147-YEJ250M4,EWR147-YEJ280M4,EWR147-YS132M4,EWR147-YS160M4,EWR147-YS180M4,EWR147-YS200M4,EWR147-YS225M4,EWR147-YS250M4,EWR147-YS280M4,EWR147-YVP132M4,EWR147-YVP160M4,EWR147-YVP180M4,EWR147-YVP200M4,EWR147-YVP225M4,EWR147-YVP250M4,EWR147-YVP280M4,EWR147-YVPEJ132M4,EWR147-YVPEJ160M4,EWR147-YVPEJ180M4,EWR147-YVPEJ200M4,EWR147-YVPEJ225M4,EWR147-YVPEJ250M4,EWR147-YVPEJ280M4,SLR147-Y11KW,SLR147-Y132M4,SLR147-Y15KW,SLR147-Y160M4,SLR147-Y18.5KW,SLR147-Y180M4,SLR147-Y200M4,SLR147-Y225M4,SLR147-Y22KW,SLR147-Y250M4,SLR147-Y280M4,SLR147-Y30KW,SLR147-Y37KW,SLR147-Y45KW,SLR147-Y55KW,SLR147-Y75KW,SLR147-Y90KW,SLR147-YEJ132M4,SLR147-YEJ160M4,SLR147-YEJ180M4,SLR147-YEJ200M4,SLR147-YEJ225M4,SLR147-YEJ250M4,SLR147-YEJ280M4,SLR147-YS132M4,SLR147-YS160M4,SLR147-YS180M4,SLR147-YS200M4,SLR147-YS225M4,SLR147-YS250M4,SLR147-YS280M4,SLR147-YVP132M4,SLR147-YVP160M4,SLR147-YVP180M4,SLR147-YVP200M4,SLR147-YVP225M4,SLR147-YVP250M4,SLR147-YVP280M4,SLR147-YVPEJ132M4,SLR147-YVPEJ160M4,SLR147-YVPEJ180M4,SLR147-YVPEJ200M4,SLR147-YVPEJ225M4,SLR147-YVPEJ250M4,SLR147-YVPEJ280M4,DSZR147-Y11KW,DSZR147-Y132M4,DSZR147-Y15KW,DSZR147-Y160M4,DSZR147-Y18.5KW,DSZR147-Y180M4,DSZR147-Y200M4,DSZR147-Y225M4,DSZR147-Y22KW,DSZR147-Y250M4,DSZR147-Y280M4,DSZR147-Y30KW,DSZR147-Y37KW,DSZR147-Y45KW,DSZR147-Y55KW,DSZR147-Y75KW,DSZR147-Y90KW,DSZR147-YEJ132M4,DSZR147-YEJ160M4,DSZR147-YEJ180M4,DSZR147-YEJ200M4,DSZR147-YEJ225M4,DSZR147-YEJ250M4,DSZR147-YEJ280M4,DSZR147-YS132M4,DSZR147-YS160M4,DSZR147-YS180M4,DSZR147-YS200M4,DSZR147-YS225M4,DSZR147-YS250M4,DSZR147-YS280M4,DSZR147-YVP132M4,DSZR147-YVP160M4,DSZR147-YVP180M4,DSZR147-YVP200M4,DSZR147-YVP225M4,DSZR147-YVP250M4,DSZR147-YVP280M4,DSZR147-YVPEJ132M4,DSZR147-YVPEJ160M4,DSZR147-YVPEJ180M4,DSZR147-YVPEJ200M4,DSZR147-YVPEJ225M4,DSZR147-YVPEJ250M4,DSZR147-YVPEJ280M4,BR147-Y11KW,BR147-Y132M4,BR147-Y15KW,BR147-Y160M4,BR147-Y18.5KW,BR147-Y180M4,BR147-Y200M4,BR147-Y225M4,BR147-Y22KW,BR147-Y250M4,BR147-Y280M4,BR147-Y30KW,BR147-Y37KW,BR147-Y45KW,BR147-Y55KW,BR147-Y75KW,BR147-Y90KW,BR147-YEJ132M4,BR147-YEJ160M4,BR147-YEJ180M4,BR147-YEJ200M4,BR147-YEJ225M4,BR147-YEJ250M4,BR147-YEJ280M4,BR147-YS132M4,BR147-YS160M4,BR147-YS180M4,BR147-YS200M4,BR147-YS225M4,BR147-YS250M4,BR147-YS280M4,BR147-YVP132M4,BR147-YVP160M4,BR147-YVP180M4,BR147-YVP200M4,BR147-YVP225M4,BR147-YVP250M4,BR147-YVP280M4,BR147-YVPEJ132M4,BR147-YVPEJ160M4,BR147-YVPEJ180M4,BR147-YVPEJ200M4,BR147-YVPEJ225M4,BR147-YVPEJ250M4,BR147-YVPEJ280M4,GR147-Y11KW,GR147-Y132M4,GR147-Y15KW,GR147-Y160M4,GR147-Y18.5KW,GR147-Y180M4,GR147-Y200M4,GR147-Y225M4,GR147-Y22KW,GR147-Y250M4,GR147-Y280M4,GR147-Y30KW,GR147-Y37KW,GR147-Y45KW,GR147-Y55KW,GR147-Y75KW,GR147-Y90KW,GR147-YEJ132M4,GR147-YEJ160M4,GR147-YEJ180M4,GR147-YEJ200M4,GR147-YEJ225M4,GR147-YEJ250M4,GR147-YEJ280M4,GR147-YS132M4,GR147-YS160M4,GR147-YS180M4,GR147-YS200M4,GR147-YS225M4,GR147-YS250M4,GR147-YS280M4,GR147-YVP132M4,GR147-YVP160M4,GR147-YVP180M4,GR147-YVP200M4,GR147-YVP225M4,GR147-YVP250M4,GR147-YVP280M4,GR147-YVPEJ132M4,GR147-YVPEJ160M4,GR147-YVPEJ180M4,GR147-YVPEJ200M4,GR147-YVPEJ225M4,GR147-YVPEJ250M4,GR147-YVPEJ280M4,RC147-Y11KW,RC147-Y132M4,RC147-Y15KW,RC147-Y160M4,RC147-Y18.5KW,RC147-Y180M4,RC147-Y200M4,RC147-Y225M4,RC147-Y22KW,RC147-Y250M4,RC147-Y280M4,RC147-Y30KW,RC147-Y37KW,RC147-Y45KW,RC147-Y55KW,RC147-Y75KW,RC147-Y90KW,RC147-YEJ132M4,RC147-YEJ160M4,RC147-YEJ180M4,RC147-YEJ200M4,RC147-YEJ225M4,RC147-YEJ250M4,RC147-YEJ280M4,RC147-YS132M4,RC147-YS160M4,RC147-YS180M4,RC147-YS200M4,RC147-YS225M4,RC147-YS250M4,RC147-YS280M4,RC147-YVP132M4,RC147-YVP160M4,RC147-YVP180M4,RC147-YVP200M4,RC147-YVP225M4,RC147-YVP250M4,RC147-YVP280M4,RC147-YVPEJ132M4,RC147-YVPEJ160M4,RC147-YVPEJ180M4,RC147-YVPEJ200M4,RC147-YVPEJ225M4,RC147-YVPEJ250M4,RC147-YVPEJ280M4,MTD147-Y11KW,MTD147-Y132M4,MTD147-Y15KW,MTD147-Y160M4,MTD147-Y18.5KW,MTD147-Y180M4,MTD147-Y200M4,MTD147-Y225M4,MTD147-Y22KW,MTD147-Y250M4,MTD147-Y280M4,MTD147-Y30KW,MTD147-Y37KW,MTD147-Y45KW,MTD147-Y55KW,MTD147-Y75KW,MTD147-Y90KW,MTD147-YEJ132M4,MTD147-YEJ160M4,MTD147-YEJ180M4,MTD147-YEJ200M4,MTD147-YEJ225M4,MTD147-YEJ250M4,MTD147-YEJ280M4,MTD147-YS132M4,MTD147-YS160M4,MTD147-YS180M4,MTD147-YS200M4,MTD147-YS225M4,MTD147-YS250M4,MTD147-YS280M4,MTD147-YVP132M4,MTD147-YVP160M4,MTD147-YVP180M4,MTD147-YVP200M4,MTD147-YVP225M4,MTD147-YVP250M4,MTD147-YVP280M4,MTD147-YVPEJ132M4,MTD147-YVPEJ160M4,MTD147-YVPEJ180M4,MTD147-YVPEJ200M4,MTD147-YVPEJ225M4,MTD147-YVPEJ250M4,MTD147-YVPEJ280M4,WXR147-WSS11KW,WXR147-WSS132M4,WXR147-WSS15KW,WXR147-WSS160M4,WXR147-WSS18.5KW,WXR147-WSS180M4,WXR147-WSS200M4,WXR147-WSS225M4,WXR147-WSS22KW,WXR147-WSS250M4,WXR147-WSS280M4,WXR147-WSS30KW,WXR147-WSS37KW,WXR147-WSS45KW,WXR147-WSS55KW,WXR147-WSS75KW,WXR147-WSS90KW,WXR147-WSSB132M4,WXR147-WSSB160M4,WXR147-WSSB180M4,WXR147-WSSB200M4,WXR147-WSSB225M4,WXR147-WSSB250M4,WXR147-WSSB280M4,WXR147-WSSVP132M4,WXR147-WSSVP160M4,WXR147-WSSVP180M4,WXR147-WSSVP200M4,WXR147-WSSVP225M4,WXR147-WSSVP250M4,WXR147-WSSVP280M4,WXR147-WSSVPB132M4,WXR147-WSSVPB160M4,WXR147-WSSVPB180M4,WXR147-WSSVPB200M4,WXR147-WSSVPB225M4,WXR147-WSSVPB250M4,WXR147-WSSVPB280M4。

R147減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.hjghgs.com/product/list-rxiliejiansuji-cn.html
